Description

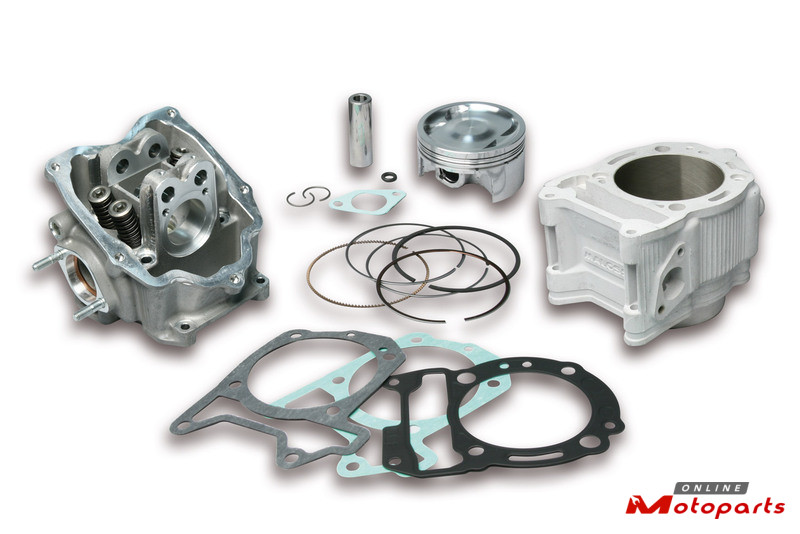

TECHNICAL SPECIFICATIONS

Cylinder

• Bore Ø 75.5 mm;
• Stroke 63 mm;
• Displacement 282;
• Compression ratio 12.5:1.
• Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances.
• Machining: on machine tools with high precision numerical control.
• Cylinder-piston connection with an allowance of 0.05 mm.
• Recalculated and upgraded heat exchange surfaces.

Piston

• Ultra compact with 3 rings.
• Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the sliding surfaces.
• Machining on machine tools with numerical control.
• Lightened and reinforced.
• Upgraded heat exchange surfaces.

Piston rings

• Special rings with high sliding ease and very high mechanical resistance.
• I° ring compression in nitrided and chromium steel.
• II° special cast iron ring.
• Three - piece scraper ring made of chromiumplated special steel alloy.

Head

• Head made of gravity-fed cast aluminium alloy, tempered and sandblasted, machined within thousandth (mm) tolerances utilizing super precise work cells.
• Valve guides designed with new profile, made using a powdered metal sintering process (steel, phosphorous, carbon, copper and manganese).
• Valve seats made of cobalt-molybdenum steel alloy characterised by copper infiltration and a special heat/chemical treatment. Increased intake valve - ø 25 mm, made of a special steel alloy and a special heat/chemical treatment.
• Increased exhaust valve - ø 22.2 mm and made of Nimonich 80 material (Nickel, Chromium, Titanium, and Aluminium alloy).
• Exhaust and Intake valve springs made of Si-Cr oil-tempered and annealed steel, designed to operate optimally under increased loads due to increased engine power.

Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use
