DENALI Dialdim Kit D3 consisting of:

• DENALI DialDim Lighting Controller (1x)
• DENALI D3 TriOptic LED Additionnal Lighting (2x)
• DENALI DialDim Plug & Play Cable Adapter - Yamaha Tenere 700

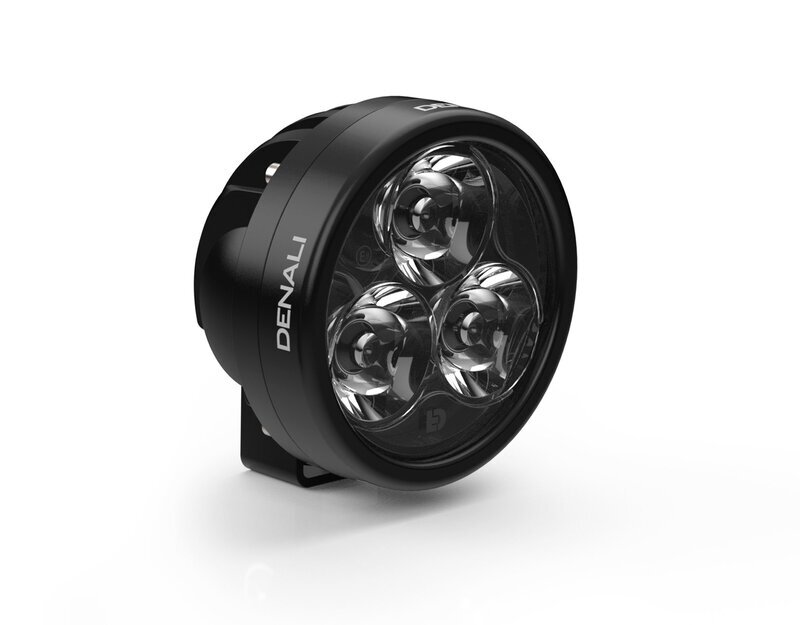

Our new D3 LED lights are built upon a decade of DENALI innovation to deliver the highest performing 36-watt street-legal driving light to hit the market. Our D3 driving light features our signature TriOptic™ beam system that includes a spot and hybrid driving lens with each light pod. Unlike previous TriOptic™ lights, the D3 hybrid driving beam is ECE and SAE compliant to deliver an impressive street-legal high beam in North America and European Union countries. But what if you're not concerned with street-legal precision and just want off-road outrageous? We got you covered too! The D3 spot lens was engineered for maximum beam distance measuring over 1900 feet at 1 lux (per pair). No other 36-watt light even comes close. The spot beam is so impressive it actually outperforms top-tier competitor's lights that are twice it's size.

Our D3 is also available in an SAE & ECE certified fog beam for drivers seeking a true street-legal fog beam that is super wide and features a crisp horizontal "cut-off".

Features

• TriOptic™ Lens System (includes spot and hybrid lenses with each pod)
• Best in class street-legal spot and hybrid beams (SAE/DOT & ECE certified)
• High-Intensity Series Cree LEDs outputting 2100 lumens per pod
• DataDim™ 3-wire smart-dimming technology (compatible with all DENALI dimming controllers)
• DrySeal™ Submersible Waterproof light can withstand the most extreme environments
• Impact PC™ Polycarbonate bezels won't crack, fade or corrode like traditional aluminum bezels.
• LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating

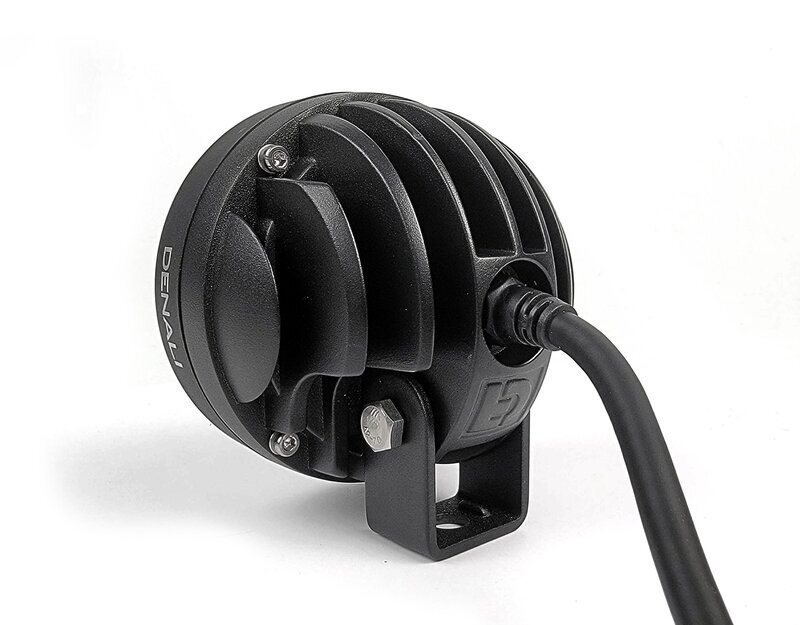

• Low profile mounting bracket with stainless steel hardware included
• Additional SAE/DOT & ECE certified hybrid driving lens included (spot lens installed)
• Amber & Selective Yellow lenses available (sold separately)

Beam Performance (pair)

• Spot Beam
• Beam Distance (at 1 lux): 1910 feet (582 meters)
• Beam Width (at 1 lux): 100 feet (30 meters)

Combo Beam (1 spot, 1 hybrid)

• Beam Distance (at 1 lux): 1520 feet (463 meters)
• Beam Width (at 1 lux): 175 feet (53 meters)

Hybrid Beam

• Beam Distance (at 1 lux): 1050 feet (320 meters)
• Beam Width (at 1 lux): 225 feet (69 meters)

Specs (single pod)

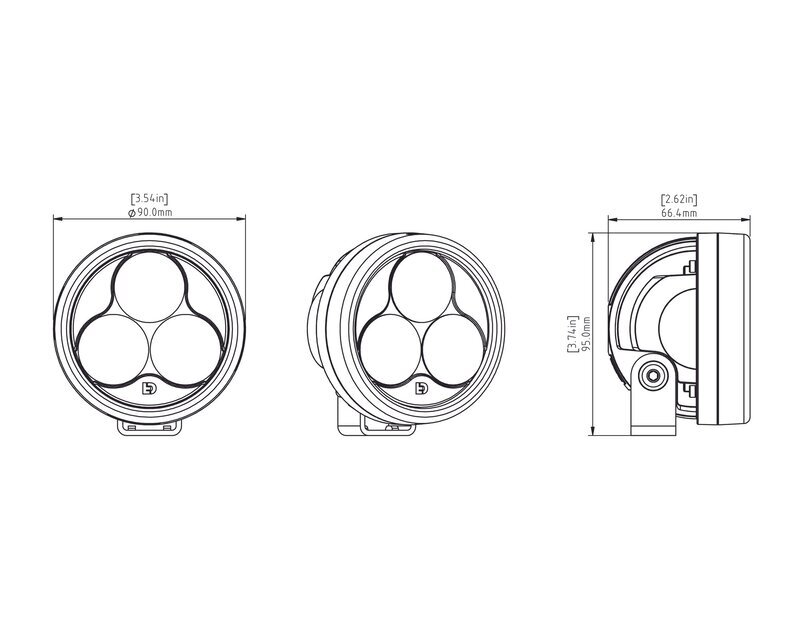

• Pod Size: 3.5" (90mm) Round x 2.62" (66mm) Deep
• LED: (3x) 11 Watt Cree XP-P LEDs
• Power Draw: 36 Watts (3 Amps)
• Lumens: 2100
• DataDim™ Compatible: Yes
• Operating Voltage: 9-32V DC
• IP67 Waterproof & Submersible
• Hybrid Lens Certifications: SAE/DOT J581 & ECE R112
• Spot Lens Certifications: ECE R112

DialDim™ Lighting Controller

Allows to sell a complete solution with easy control of all light functions

• Independently turn on/off and dim two sets of auxiliary lights from a single switch
• LED halo switch displays your exact settings
• Unlock intelligent flash features that can cancel your aux lights with your turn signal, flash your aux lights as a turn signal, or strobe your lights when you sound your horn.


On/Off & Dim
Independently control two sets of lights on/off and intensity level using the single DialDim™ Switch. The blue halo controls light set one and the green halo controls light set two. Double click to switch between the two circuits.

High/Low Sync
Your auxiliary lights will automatically switch between your selected dim setting to full intensity with the factory high beam switch. Simply connect the blue input wire to your vehicle high beam circuit to enable this feature.

Stealth Mode
A clever 0% dim setting on the switch allows your lights to be "off" during normal driving conditions but will jump to 100% intensity with your vehicle high beam switch. The lights will also react to turn signal and horn inputs in this mode but will remain off when no inputs are detected.

Cancel with Turn Signal
When enabled the main lights (blue circuit 1) will cancel in sync with your signal to prevent "washing out" your factory turn signal. Simply connect the yellow and orange input wires to your vehicle turn signal circuit to enable this feature.

Flash as Turn Signal
When enabled your amber visibility lights (green circuit 2) will flash in sync with your factory turn signals. Simply connect the yellow and orange input wires to your vehicle turn signal circuit to enable this feature.

Strobe with Horn
When enabled your auxiliary lights on both circuits will strobe at 4Hz when you sound your horn. Simply connect the green input wire to your vehicle horn circuit to enable this feature.

Electronically Fused Circuits
Both light circuits are electronically fused and can be set right from the switch itself! The halo will illuminate red to notify you when a circuit fused is tripped.

Voltage Display Indicator
Upon vehicle startup, the switch halo will flash green to indicate a healthy battery voltage, or flash red to indicate a battery voltage that is below 11.8v.

Low Voltage Cutoff
If battery voltage drops below 10.8v the lights will not power on preventing you from being stranded. The switch halo will flash 4 red LEDs to indicate the low voltage condition.

This wiring adapter enables plug-&-play connection between our standard DialDim Lighting Controller and the Yamaha Tenere 700. To install, simply connect the white connector to our DialDim Controller and the remaining connectors in line at the Tenere 700 headlight, horn, and turn signal connectors.
