DENALI Dialdim Kit D4 consisting of:

• DENALI DialDim Lighting Controller (1x)
• DENALI Plug-&-Play DialDim™ Wiring Adapter (1x)
• DENALI D4 LED Additional Lighting 10W - By Unit (2x)

The DENALI D4 2.0 TriOptic™ LED light kit with DataDim technology is among the most powerful auxiliary lights on the market, thanks to a stingingly strong quartet of LEDs that help you identify trouble as far as 240m down the road yet still shines brightly to the edges of the road and beyond. Four 10-watt CREE XPL HI LEDs produce a piercing beam of light yet combine to use just 6.6 amps for both lamps.

New with the DENALI 2.0 generation is the industry-leading TriOptic™ lens system. The D4 is fitted with True-Hybrid™ lenses, providing a combination of spot and flood patterns in each lamp. This configuration gives you 170m of forward light and 42m of visibility to the side. Also in the box are lenses that convert all four LEDs in each lamp to a spot pattern, resulting in a tight, distance-focused beam brilliant out to 240m while still retaining a 33m beam width. Want a third option? Fit one of each lens to your D4 pair to get a Spot-Hybrid configuration that offers 190m of maximum distance with a 42m beam width.

Uses cast-in cooling fins to effectively dissipate heat and maximize light output. A durable black powder coated finish and a special Impact PC™ corrosion proof bezel ensures your lights will continue to look great even after repeated stone and debris impacts. Because of its size, the D4 is recommended for use with sturdy crash bars or other engine-protection devices, or with DENALI’s expanding line of bike-specific mounts.

Specifications:

• LEDs (8, 4 per lamp) 10 Watt Cree XPL HI
• Power Draw: 6.6 amps (total)
• Beam Distance (spot): 243m
• Beam Width (spot): 33m
• Raw Lumens: 8760
• Intensity: Single Intensity Harness
• DataDim™ Compatible: Yes
• Operating Voltage: 12v
• Pod Size : Ø99x66mm deep

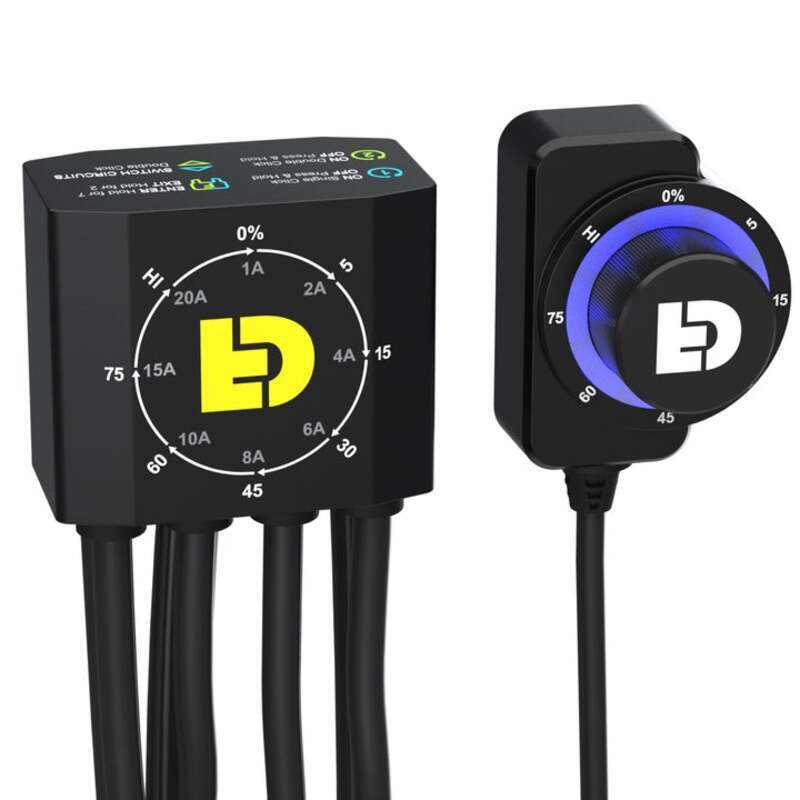

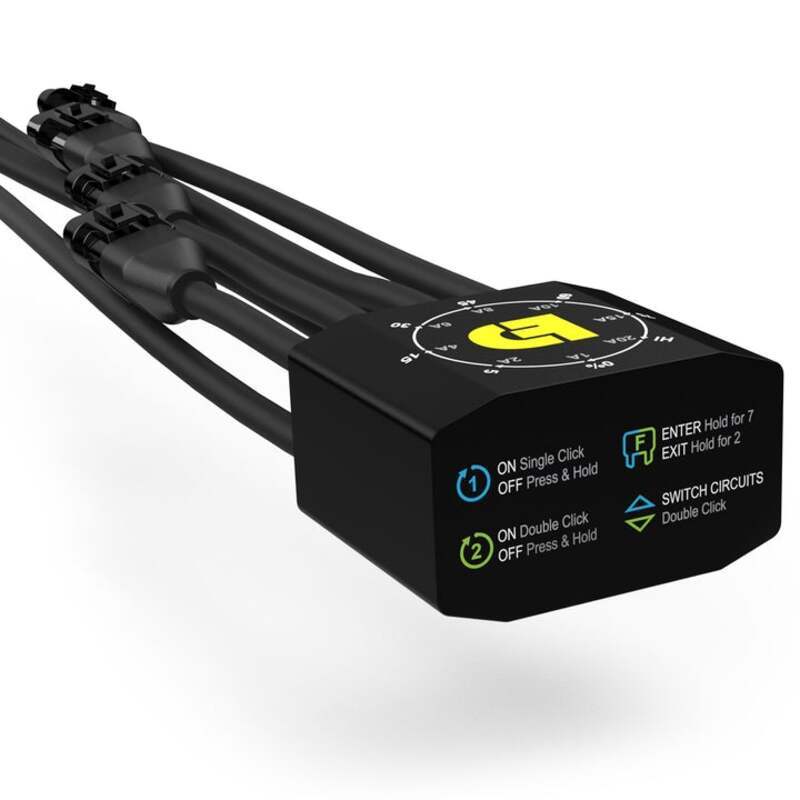

DialDim™ Lighting Controller

Allows to sell a complete solution with easy control of all light functions

• Independently turn on/off and dim two sets of auxiliary lights from a single switch
• LED halo switch displays your exact settings
• Unlock intelligent flash features that can cancel your aux lights with your turn signal, flash your aux lights as a turn signal, or strobe your lights when you sound your horn.


On/Off & Dim
Independently control two sets of lights on/off and intensity level using the single DialDim™ Switch. The blue halo controls light set one and the green halo controls light set two. Double click to switch between the two circuits.

High/Low Sync
Your auxiliary lights will automatically switch between your selected dim setting to full intensity with the factory high beam switch. Simply connect the blue input wire to your vehicle high beam circuit to enable this feature.

Stealth Mode
A clever 0% dim setting on the switch allows your lights to be "off" during normal driving conditions but will jump to 100% intensity with your vehicle high beam switch. The lights will also react to turn signal and horn inputs in this mode but will remain off when no inputs are detected.

Cancel with Turn Signal
When enabled the main lights (blue circuit 1) will cancel in sync with your signal to prevent "washing out" your factory turn signal. Simply connect the yellow and orange input wires to your vehicle turn signal circuit to enable this feature.

Flash as Turn Signal
When enabled your amber visibility lights (green circuit 2) will flash in sync with your factory turn signals. Simply connect the yellow and orange input wires to your vehicle turn signal circuit to enable this feature.

Strobe with Horn
When enabled your auxiliary lights on both circuits will strobe at 4Hz when you sound your horn. Simply connect the green input wire to your vehicle horn circuit to enable this feature.

Electronically Fused Circuits
Both light circuits are electronically fused and can be set right from the switch itself! The halo will illuminate red to notify you when a circuit fused is tripped.

Voltage Display Indicator
Upon vehicle startup, the switch halo will flash green to indicate a healthy battery voltage, or flash red to indicate a battery voltage that is below 11.8v.

Low Voltage Cutoff
If battery voltage drops below 10.8v the lights will not power on preventing you from being stranded. The switch halo will flash 4 red LEDs to indicate the low voltage condition.

This wiring adapter enables plug-&-play connection between our standard DialDim Lighting Controller and the Harley-Davidson Pan America 1250. To install, simply connect the white connector to our DialDim Controller and the remaining connectors in line at the Pan America headlight, horn, and turn signal connectors.
