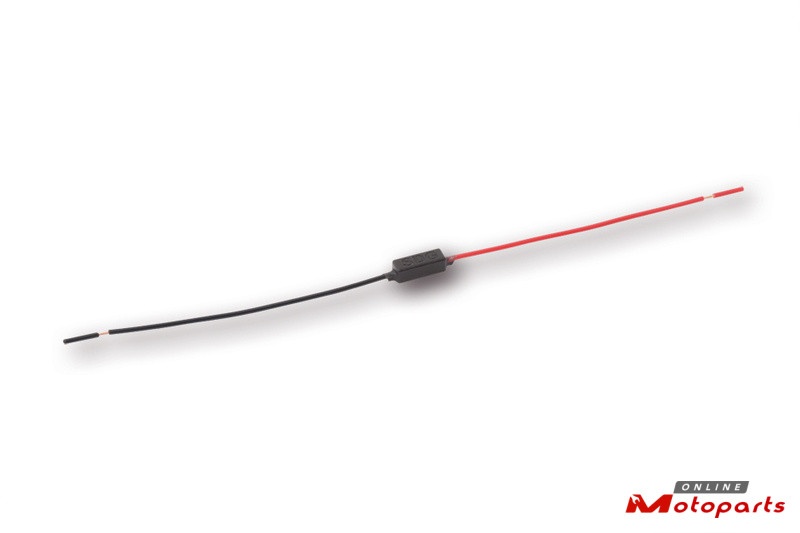

HIGHSIDER pro PW-NANO

Extremely small, load-independent digital flasher unit that is ideal for LED flasher conversions or for conventional 10-watt or 21-watt flasher bulbs. The relay provides an absolutely constant flashing frequency and fits
and fits into almost all steering tubes or frames.

Precisely tuned - the extensive range of accessories from HIGHSIDER pro is perfectly tailored to your motorbike. With the highest level of quality and functionality, you can easily customise your bike according to your wishes.

Dimensions:

• Length: 15mm
• Width: 8mm
• Height: 7 mm

Technical specifications:

• Supply voltage: 8 V - 18 V
• Load range: 0.1 W - 42 W per side
• Simple connection via 2 wires:
  Connect red cable = 12 V (+) to terminal 49, it is recommended to connect a 10 A fuse upstream.
  Black cable = connect ground (-) in series to indicator switch with terminal 49a

Scope of delivery: 1 piece

Hints:
On various English bikes (BSA, Norton, etc.) all consumers are connected to ground, positive is connected to the frame. Therefore, when installing the PW Nano, the black cable must be connected to battery ground and the red cable to the switch.
Not suitable for push-button switches.
Not suitable as a flasher relay set that has a warning light function or other additional functions.
