Description

Super T-Max

Malossi is proud to offer "Super T-Max," a completely new gamma of products for the most popular Yamaha Maxi-Scooter and like always "Made In Italy"!



Double Power Cams

Camshafts are the most critical timing component in a 4-Cycle engine.

The camshafts, in fact, are assigned the tasks of controlling the air/fuel mixture in the combustion chamber by opening and closing the intake valves and also evacuating the exhaust gases by opening and closing the exhaust valves.

Malossi's Double Power Cams are fine-tuned to generate an optimum and progressive power increase if matched with original cylinder or an exponential increase in power if matched with Malossi's 560 cc big bore twin cylinder set.

Malossi has thought of both carburetted and electronic fuel injected scooters.

In fact, first and second series, if equipped with Malossi's Double Power Cams, can produce noticeable power increases.

Malossi's Double Power Cams result from long and meticulous engine testing with our in-house dyno.

The manufacturing process was achieved by our engineering department's scrupulous requirements, starting with the material selection to the high precision machining to the heat and chemical treating and finally to quality inspection and assembly.

Malossi S.p.A, always providing the highest quality service.



Specifications

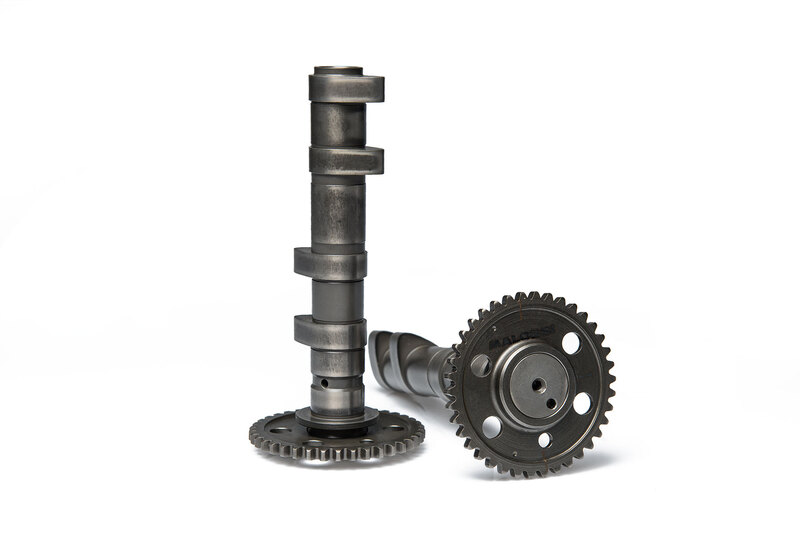

• Exhaust valve camshaft
• Intake valve camshaft

Made of high alloy steel, casehardened, gas nitride, and ground with redesigned, high lift and re-profiled lobes.



Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use.

Compatible brands and models

  YAMAHA T MAX 530 ie 4T LC 2012->2014 (J409E)   YAMAHA T MAX 530 ie 4T LC 2015->2016 (J409E)   YAMAHA T MAX 530 ie 4T LC euro 4 2017-> (J415E)   YAMAHA T MAX 560 ie 4T LC euro 5 2020->2021 (J420E)   YAMAHA T MAX 560 ie 4T LC euro 5 2022->2024   YAMAHA T MAX DX 530 ie 4T LC euro 4 2017-> (J415E)   YAMAHA T MAX SX 530 ie 4T LC euro 4 2017-> (J415E)   YAMAHA T MAX Tech MAX 560 ie 4T LC euro 5 2020->2021 (J420E)   YAMAHA T MAX Tech MAX 560 ie 4T LC euro 5 2022->2024   YAMAHA T MAX 560 ie 4T LC euro 5+ 2025-> (J421E)   YAMAHA T MAX Tech MAX 560 ie 4T LC euro 5+ 2025-> (J421E)
