RFX PRO DISC GUARD MOUNT, BLK FXDG5010099BK

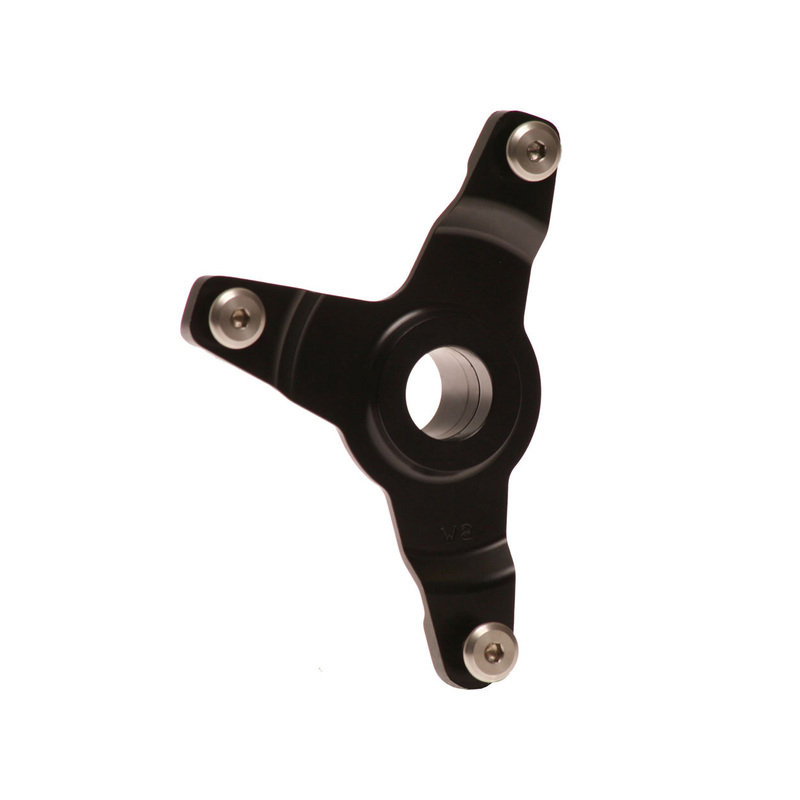

RFX Pro Disc Guard Mount (Black)

Product	RFX PRO DISC GUARD MOUNT, BLK
Merk	Rfx
Categoy	Acc. design parts
Voorraadnummer	54837 (1110483001)

Prijs	€ 35,28
Voorraad	4

Toevoegen aan winkelmand

RFX Pro Series Disc Guards help reduce brake disc damage by preventing rocks and roost from hitting and damaging the disc. RFX Disc guards also feature a wheel spacer fitment to speed up wheel changes whilst the design still allows the calliper to be cooled by air for improved braking. Suitable for use with oversize discs.

Features

High strength plastic guard.
Protects brake disc from rocks and roost.
Accepts oversize 270mm brake discs.
Allows air to cool the brake calliper unlike most OEM guards.
Bracket replaces wheel spacer for quicker and easier wheel changes.
Billet aluminium bracket construction.
High stick 3M colour coded RFX decal.
Multiple colour combinations available.
Model specific bracket is required.

Fitting Instructions

Remove OEM disc guard, spindle nut and loosen spindle pinch bolts.
Remove spindle and front wheel.
Remove disc side wheel spacer and replace with new disc cover and mount.
Re-fit wheel taking care to align the disc into the calliper.
Insert the spindle and lossly tighten the spindle nut.
With the bike on the floor and with the front brake on, compress the front forks to align the front wheel.
Tighten pinch bolts and spindle nut.

Part compatible with

Ktm - 125 SX (2003)
Ktm - 125 SX (2004)
Ktm - 125 SX (2005)
Ktm - 125 SX (2006)
Ktm - 125 SX (2007)
Ktm - 125 SX (2008)
Ktm - 125 SX (2009)
Ktm - 125 SX (2010)
Ktm - 125 SX (2011)
Ktm - 125 SX (2012)
Ktm - 125 SX (2013)
Ktm - 125 SX (2014)
Ktm - 125 EXC (2003)
Ktm - 125 EXC (2004)
Ktm - 125 EXC (2005)
Ktm - 125 EXC (2006)
Ktm - 125 EXC (2007)
Ktm - 125 EXC (2008)
Ktm - 125 EXC (2009)
Ktm - 125 EXC (2010)
Ktm - 125 EXC (2011)
Ktm - 125 EXC (2012)
Ktm - 125 EXC (2013)
Ktm - 125 EXC (2014)
Ktm - 125 EXC (2015)
Ktm - 144 SX (2007)
Ktm - 144 SX (2008)
Ktm - 150 SX (2011)
Ktm - 150 SX (2012)
Ktm - 150 SX (2013)
Ktm - 150 SX (2014)
Ktm - 150 SX (2008)
Ktm - 150 SX (2009)
Ktm - 150 SX (2010)
Ktm - 250 SX (2003)
Ktm - 250 SX (2004)
Ktm - 250 SX (2005)
Ktm - 250 SX (2006)
Ktm - 250 SX (2007)
Ktm - 250 SX (2008)
Ktm - 250 SX (2009)
Ktm - 250 SX (2010)
Ktm - 250 SX (2011)
Ktm - 250 SX (2012)
Ktm - 250 SX (2013)
Ktm - 250 SX (2014)
Ktm - 250 EXC (2003)
Ktm - 250 EXC (2004)
Ktm - 250 EXC (2005)
Ktm - 250 EXC (2006)
Ktm - 250 EXC (2007)
Ktm - 250 EXC (2008)
Ktm - 250 EXC (2009)
Ktm - 250 EXC (2010)
Ktm - 250 EXC (2011)
Ktm - 250 EXC (2012)
Ktm - 250 EXC (2013)
Ktm - 250 EXC (2014)
Ktm - 250 EXC (2015)
Ktm - 250 SX-F (2014)
Ktm - 250 SX-F (2013)
Ktm - 250 SX-F (2012)
Ktm - 250 SX-F (2011)
Ktm - 250 SX-F (2010)
Ktm - 250 SX-F (2009)
Ktm - 250 SX-F (2008)
Ktm - 250 SX-F (2007)
Ktm - 250 SX-F (2006)
Ktm - 250 SX-F (2005)
Ktm - 250 SX-F FACTORY EDITION MARVIN MUSQUIN (2010)
Ktm - 250 SX-F FACTORY EDITION MARVIN MUSQUIN (2011)
Ktm - 250 SX-F FACTORY EDITION KEN ROCZEN (2012)
Ktm - 300 EXC (2003)
Ktm - 300 EXC (2004)
Ktm - 300 EXC (2005)
Ktm - 300 EXC (2006)
Ktm - 300 EXC (2007)
Ktm - 300 EXC (2008)
Ktm - 300 EXC (2009)
Ktm - 300 EXC (2010)
Ktm - 300 EXC (2011)
Ktm - 300 EXC (2012)
Ktm - 300 EXC (2013)
Ktm - 300 EXC (2014)
Ktm - 300 EXC (2015)
Ktm - 350 SX-F (2015)
Ktm - 350 SX-F (2014)
Ktm - 350 SX-F (2013)
Ktm - 350 SX-F (2012)
Ktm - 350 SX-F (2011)
Ktm - 350 EXC-F (2015)
Ktm - 350 EXC-F (2014)
Ktm - 350 EXC-F (2013)
Ktm - 350 EXC-F (2012)
Ktm - 450 SX-F (2014)
Ktm - 450 SX-F (2013)
Ktm - 450 SX-F (2012)
Ktm - 450 SX-F (2011)
Ktm - 450 SX-F (2010)
Ktm - 450 SX-F (2009)
Ktm - 450 SX-F (2008)
Ktm - 450 SX-F (2007)
Ktm - 450 EXC (2009)
Ktm - 450 EXC (2010)
Ktm - 450 EXC (2011)
Ktm - 450 EXC (2012)
Ktm - 450 EXC (2013)
Ktm - 450 EXC (2014)
Ktm - 450 EXC (2015)
Ktm - 450 EXC SIX DAYS (2010)
Ktm - 450 EXC SIX DAYS (2009)
Ktm - 450 EXC SIX DAYS (2011)
Ktm - 450 EXC SIX DAYS (2012)
Ktm - 450 EXC SIX DAYS (2013)
Ktm - 450 EXC SIX DAYS (2014)
Ktm - 450 EXC SIX DAYS (2015)
Ktm - 450 EXC FACTORY EDITION (2010)
Ktm - 450 EXC FACTORY EDITION (2011)
Ktm - 450 EXC FACTORY EDITION (2015)
Ktm - 500 EXC (2012)
Ktm - 500 EXC (2013)
Ktm - 500 EXC (2014)
Ktm - 500 EXC (2015)
Ktm - 500 EXC SIX DAYS (2012)
Ktm - 500 EXC SIX DAYS (2013)
Ktm - 500 EXC SIX DAYS (2014)
Ktm - 500 EXC SIX DAYS (2015)
Husqvarna - TC 125 (2014)
Husqvarna - TC 250 (2014)
Husqvarna - TE 125 (2015)
Husqvarna - TE 125 (2014)
Husqvarna - TE 125 SPECIAL EDITION (2014)
Husqvarna - TE 250 2T (2014)
Husqvarna - TE 250 (2015)
Husqvarna - FC 250 (2014)
Husqvarna - FC 350 (2014)
Husqvarna - FC 450 (2014)
Husqvarna - FE 250 (2014)
Husqvarna - FE 250 (2015)
Husqvarna - FE 250 SPECIAL EDITION (2014)
Husqvarna - FE 350 (2014)
Husqvarna - FE 350 (2015)
Husqvarna - FE 350 SPECIAL EDITION (2014)
Husqvarna - FE 450 (2014)
Husqvarna - FE 450 (2015)
Husqvarna - FE 450 SPECIAL EDITION (2014)
Husqvarna - FE 501 (2014)
Husqvarna - FE 501 (2015)
Husqvarna - FE 501 SPECIAL EDITION (2014)
