| Product | TOPPE KIT D.50 80CC MINARELLI HOR S.39.2 |
| Merk | Top performances |
| Categorie | Bovenblok |
| Voorraadnummer | 65700 (1127339) (65408) |
| Prijs | € 495,00 |
| Voorraad | 3 |
| Gewicht | 1.256 Kg |
| Formaat | 171 x 256 x 140 (bxlxh) |
ATTENTION: Cylinder with flange center distance 51 mm. For NARDÃ/NARDÃ II muffler use exhaust pipe ref. 9934190
Cylinder Kit ø 50 âTPRâ for Maxi Kit P/N. 9926580 (stroke 39,2 mm)

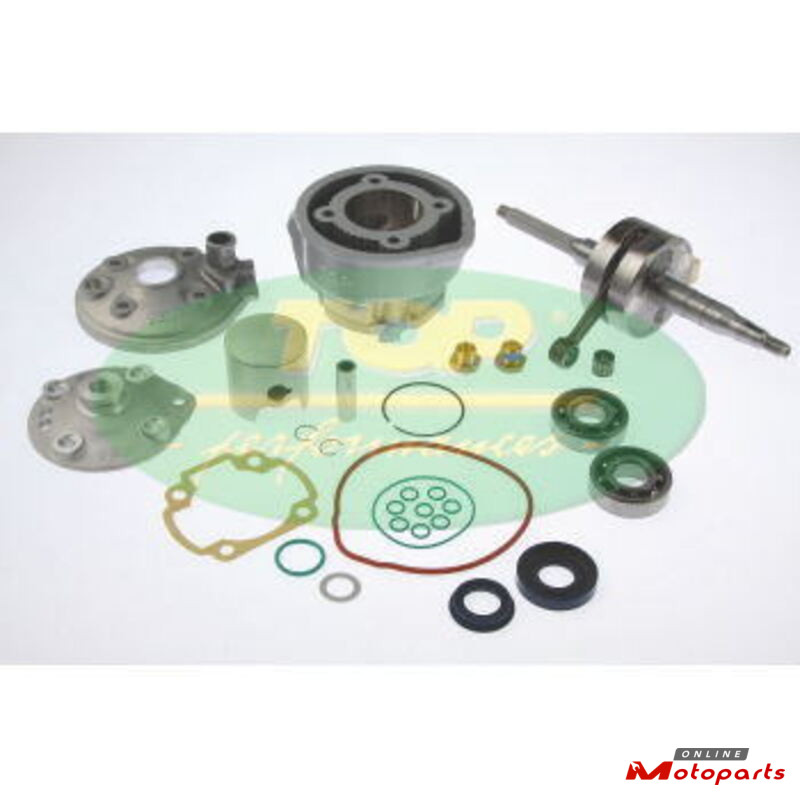

Contents
1 MA combustion chamber cover
1 Cylinder à 50 Racing Aluminium stroke 44 mm (only for part no. 9926560)
1 Cylinder à 50 Racing Aluminium stroke 39 mm (only for part no. 9926580)
1 Gap weight piston à 50 Racing
1 Chromium plated piston ring à 50 x 1
1 Exhaust flange gasket
1 Special screw M14 x 1.25; L = 11 water drain
1 H2O head reduction (GAS 1/8)
1 Pin 12 x 40
2 Pin retaining ring à 12 AC
1 Roller cage à 12 x 15 x 15
1 Shaped OR Ã 104.37 x 3.53
1 Water drain screw gasket à 14.1 x 22 x 1
1 Compression seal Viton OR Ã 53.7 x 1.78
8 Green Viton OR Ã 6.35 x 1.78
1 Green Viton OR Ã 22.22 x 2.62
1 Cylinder base gasket
1 Crankshaft stroke 39.2 mm (only for part no. 9926580)
1 Crankshaft stroke 44 mm (only for part no. 9926560)
1 Combustion chamber stroke 44 mm (only for part no. 9926560)
1 Combustion chamber (only for part no. 9926580)
2 Bearing SKF 6204ETN9/C3
1 Oil seal flywheel side
1 Oil seal clutch side
4 Stud bolt M7 x 1; L = 115 mm (only for part no. 9926560)
